Factory Direct Supply of High-quality In-stock 24-volt DC Chain-link Lifting Belt Customizable Hook Spacing
product Description
|
Name |
Crawler-type hooking cargo track |
|
Description |
A shipping method where the motor drives the track to move the hook forward,enabling the goods to follow the movement of the hook and eventually slide down. |
|
Features |
①It is equipped with three-wire terminals and a feedback circuit,which can be directly matched with the circuits of most conventional vending machines on the current market. ②It adopts interlaced installation in the middle,which is convenient for installation,space- saving and also very easy to adjust the spacing of the cargo channels. |
| Parametric description |

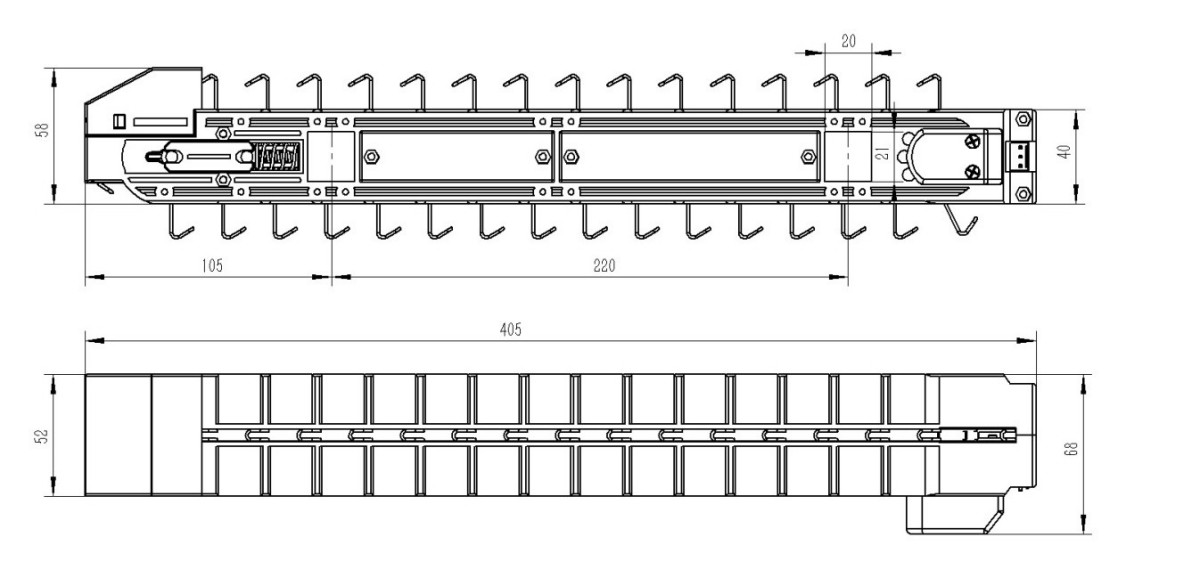

Size:405mm*68mm*58mm(length*width*height(excluding hangng hooks) |
| Motor parameters:Rated voltage 24VDC;No-load current≤100mA;Blocked rotationis strictly prohibited. |
|
| Rated load:The load of a single hook shall not exceed 350g,and the load of the entire cargo track shallnot exceed 4.5kg.Damage caused by overloading is not covered by the warranty. |
|
| The number of items that can be hung:15 PCS | |
| Hook spacing:22mm | |
| Note:The spacing and quantity of hooks can be customized forlarge batches. | |
| For more details,please consult the customer service. |
