Built-In Reduction Motor Automatic Vending Machine Accessories with Multi-push Plate Storage Channels
product Description
|
Name |
Push more pallet channels |
|
Description |
It adopts an internal reduction motorThe drum is driven by a gear medium drive scheme andis equipped with narrow-base tracks.It features an interlocking installation structure. |
|
Features |
①t adopts three-wire terminals and can be connected to an external feedback circuit,which can be directly matched with the circuits of most conventional vending machines on the current market ②It is installed in an interlaced manner in the middle,which is convenient for installation, space-saving and also very easy to adjust the spacing of the cargo channels. |
|
Parametric |
Size:535mm*70mm*104mm(length*width*height(excluding hanging hooks)) |
| Motor parameters:Rated voltage 24VDC;No-load current≤100mA;Blocked rotation is strictly prohibited. |
|
| Note:①D535-32 is equipped with a total of 32 push plates.The center distance of the push plates is 33.5mm and the thickness of the push plates is 4.5mm.The distance between the front and back of the push plate is 29mm. ②D535-24 is equipped with a tota of 24 push platesThe distance between the centers of the push plates is 44.5mm,and the thickness of the push plates is 4.5mm.The distance between the front and back of the push platesis 40mm. |
|
| For more details,please consult the customer service. | |
|
|

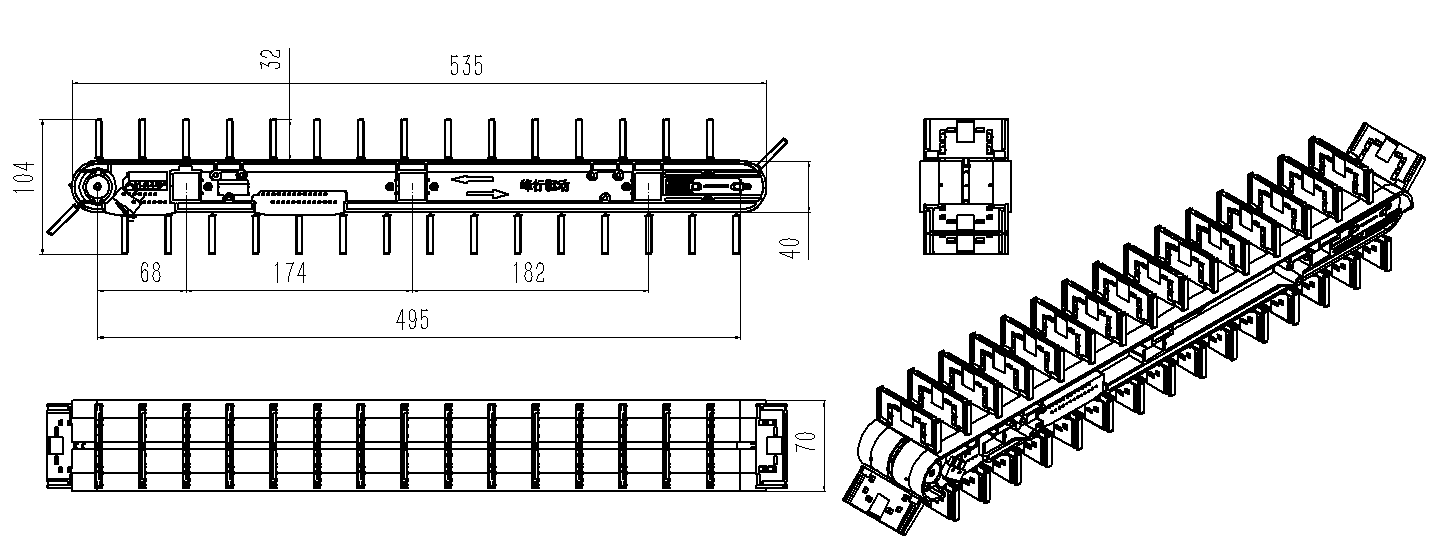

Cargo Channel Diagram
