Vending Machine Motor And Spring Assembly | Single / Dual Motor Dispensing Mechanism
| Project | Spring + Motor Assembly for Vending Machine |
| Size | Customization and inventory |
| Available Version | Single Motor Set / Dual Motor SetSingle Motor matched with single spring;Dual Motor matched with double springs |
| Motor Model | HC-100T803CC / HC-100T803C (Single Motor)HC-200T803 (Dual Motor) |
| Rated Voltage | 12VDC / 24VDC |
| No-load Speed | 23.5±3 RPM |
| No-load Current | ≤0.18 A |
| Stall Current | ≤1.35 A |
| Output Torque | Standard: ≥48 kg.cmHigh torque option: ≥60 kg.cm |
| Rotation Direction | CW / CCW (Face to turntable) |
| Spring Wire Diameter(mm) | 3mm or 4mm or 5mm or customized |
| Spring pitch | 0.6cm 1cm, 1.5cm, 2cm, 3cm, 4...12cm...Customized |
| Spring Coil Quantity | 4 coils/6 coils/7 coils/10 coils/15 coils/24 coils/30 /coilscustomized |
| Spring Rotation | Left-handed / Right-handed optional |
| Spring Material | High quality steel |
| Spring Surface | Electrostatic Spray Coating |
| Spring Inner Diameter & Length | Customizable |
| Application | Vending machine, suitable for bottled drinks, snacks, nuts, packaged goods |
| Customizable | Yes (motor voltage, torque, spring size, length, coil quantity) |
| After-sales Service | Video guidance, technical support, spare parts supply |
| Origin | China |
| Attestation | ISO9001、ROSH、REACH、CA65 |
Product Introduction

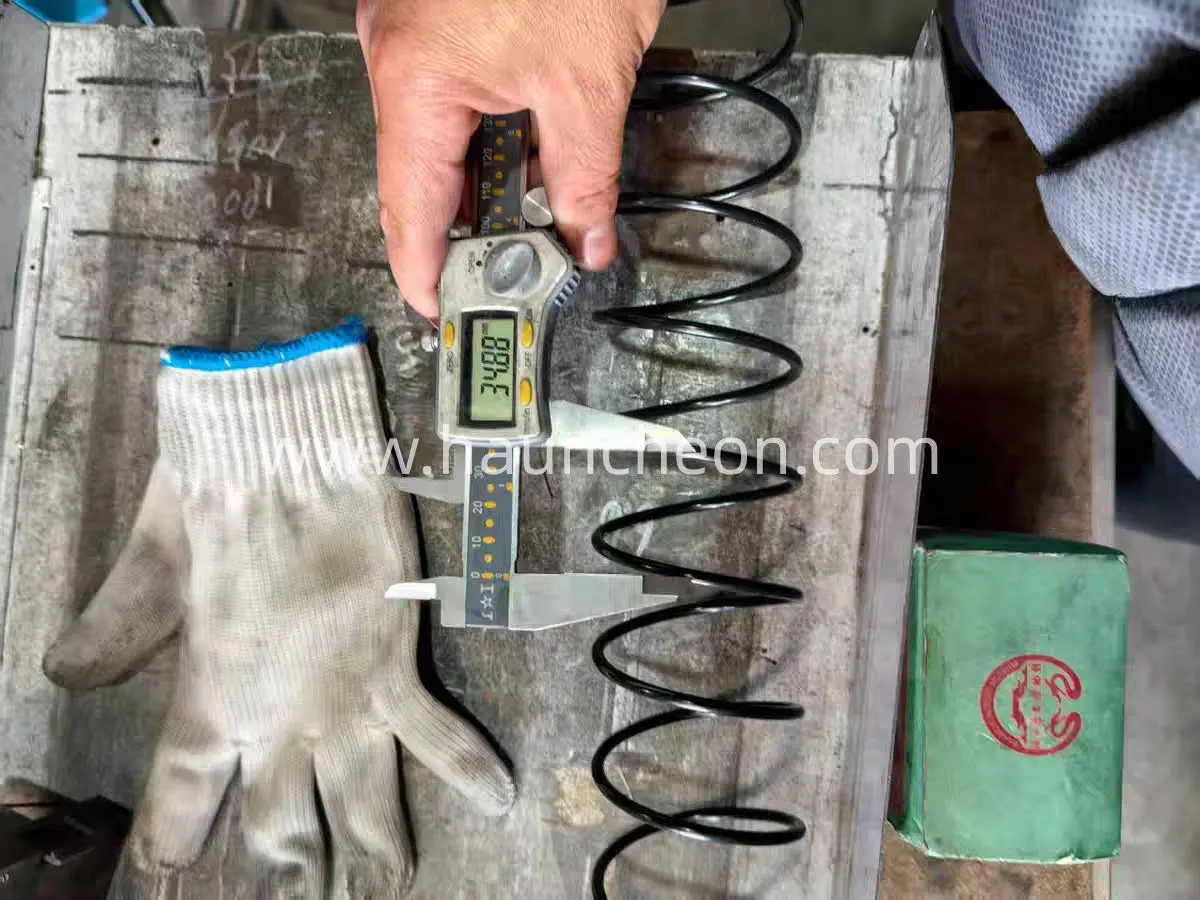

Huansheng custom vending machine parts spiral spring.The vending machine spiral is one of the earliest mass production and sales products in our company.
We have more than 15 years of combined experience, customized according to customer's needs, timely delivery, quality assurance , If your demand is high, we will have a discount.
Product features: good verticality, high hardness, no jam, smooth delivery of goods.
For example:

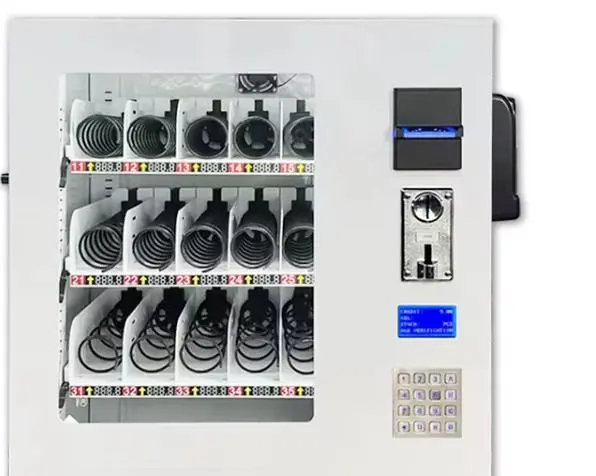

6-coil Springs is suitable for mineral water, all kinds of drinks and other vending machines are used.
10-coils Springs is suitable for snacks: betel nuts, melon seeds, snack.
24-coil Springs is suitable for toothpaste, toothbrushes, tissues, individually packaged masks and other vending machines are used.
This product is selling well at home and abroad for a long time and well praised by users. Various sizes can be customized and welcome to inquire and discuss cooperation.
