Customized Spacing Quantity Hooks 24 VDC Conveyor Belt Automatic Vending Machine Parts Machine Hook Conveyor Belt
product Description
|
Name |
Crawler-type hooking cargo track |
|
Description |
A shipping method where the motor drives the track to move the hook forward,enabling the goods to follow the movement of the hook and eventually slide down. |
|
Features |
①It is equipped with three-wire terminals and a feedback circuit,which can be directly matched with the circuits of most conventional vending machines on the current market. ②It adopts interlaced installation in the middle,which is convenient for installation,space- saving and also very easy to adjust the spacing of the cargo channels. |
| Parametric description |

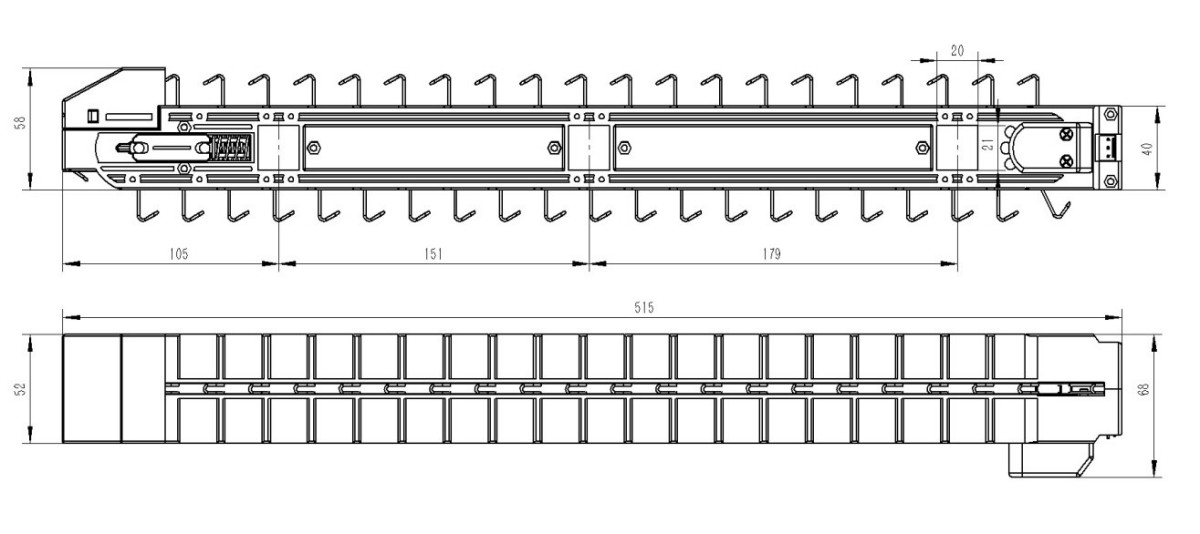

Size:515mm*68mm*58mm(length*width*height(excluding hanging hooks)) |
| Motor parameters:Rated votage 24VDC;No-load current≤100mA;Blocked rotation is strictly prohibited. |
|
| Rated load:The load of a single hook shall not exceed 350g,and the load of the entire cargo track shall not exceed 4.5kg.Damage caused by overloading is not covered by the warranty. |
|
| The number of items that can be hung:20 PCS/15 PCS/10 PCS/7 PCS | |
| Hook spacing:22mm/30mm/44mm/60mm | |
| Note:The spacing and quantity of hooks can be customized for large batches. | |
| For more details,please consult the customer service. |
